Catalogue
Browse our products

24V Special Applications

View pictures

Prt nr. Product image Description Datasheet
24PL008 12 Pole rubberized break-proof metal plug
For cable Ø 17,0 mm
Silver plated solder contacts
Nato Stock no. 5935-12-350-1294
IP67, IPX7 protection
VG 96923 B2-12P / MS75020-1		 view
24PL009 12 Pole rubberized break-proof metal plug
For cable Ø 24,0 mm
Silver plated solder contacts
Nato Stock no. 5935-12-188-1750
IP67, IPX7 protection
VG 96923 B1-12P / MS75020-1		 view
24ADTK001 12 Pole spiral coil
Rubberized break-proof metal plugs (VG 96923 B2-12P)
Working length 3,5 mtrs
Max. extension length 4 mtrs
IP67, IPX7 protection
VG 96927-22		 view
24SC006 12 Pole break-proof metal socket
For cable Ø 23,5
Silver plated solder contacts
With cap and M6 mounting kit
Nato Stock no. 5935-12-128-1833
IP67, IPX7 protection
VG 96923 A-12S / MS75021-2		 view
24SC009 Socket contact with surrounding spring
Silver plated solder/crimp contact
For max. 50 mm² cable
Spare part for 24SC007/24SC008
Nato Stock no. 5999-12-335-5654
VG 96917 S50		 view
24SC007 2 Pole break-proof metal socket
For max. 50 mm² cable
Silver plated solder/crimp contacts
With screw cap
Nato Stock no. 5935-12-308-5019
IP54, IPX4, IPX7 protection
VG 96917 A002		 view
24SC008 2 Pole reinforced composite socket
For max. 35 mm² cable
Silver plated solder/crimp contacts
With rubber cap
IP54, IPX4, IPX7 protection
VG 96917		 view
24PL014 Plug contact
Silver plated solder/crimp contact
For max.35 mm² cable
Spare part for 24PL010, 24PL012 and PL02P001
Nato Stock no. 5999-12-187-6686
VG 96917 P35		 view
24PL015 Plug contact
Silver plated solder/crimp contact
For max.50 mm² cable
Spare part for 24PL011, 24PL013 and 24PL016
VG 96917		 view
24PL010 2 Pole waterproof break-proof metal plug
For max. 35 mm² cable
Silver plated solder/crimp contacts
With rubberized metal screw ring
Length 120 mm
IP54, IPX4, IPX7 protection
VG 96917 E001B		 view
24PL011 2 Pole waterproof break-proof metal plug
For max. 50 mm² cable
Silver plated colder/crimp contacts
With rubberized metal screw ring
Length 120 mm
IP54, IPX4, IPX7 protection
VG 96917		 view
24PL016 2 Pole rubberized break-proof metal plug
Silver plated solder/crimp contacts
For max. 50 mm² cable
IP54, IPX4, IPX7 protection
VG 96917		 view
PL02P001 2 Pole break-proof metal sealing plug
For max. 35 mm² cable
Silver plated solder/crimp contacts
IP54, IPX4, IPX7 protection
VG 96917		 view
24PL012 2 Pole reinforced composite plug
For max. 35 mm² cable
Silver plated solder/crimp contacts
IP54, IPX4, IPX7 protection
VG 96917		 view
24PL013 2 Pole reinforced composite plug
For max. 50 mm² cable
Silver plated solder/crimp contacts
IP54, IPX4, IPX7 protection
VG 96917		 view

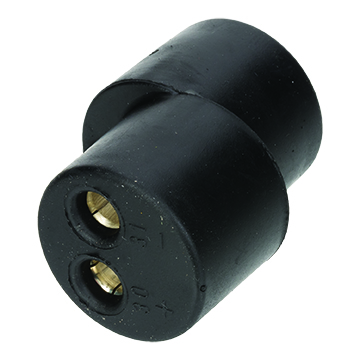

24SC011 2 Pole rubberized break-proof metal coupler
Silver plated contacts
For 24PL010 / 011 / 012 / 013 / 016 / PL02P001
Without screw caps
IP54, IPX4, IPX7 protection
VG 96917		 view
