Prt nr. |
Description |
Product image |

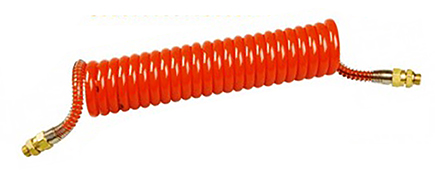

RSPU101 |
Red polyurethane with galvanized steel connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |
RSPU102 |
Yellow polyurethane with galvanized steel connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |
RSPU103 |
Red polyurethane with galvanized steel connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M22 x 1,5 |
 |
RSPU104 |
Yellow polyurethane with galvanized steel connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M22 x 1,5 |
 |
RSPU109 |
Black polyurethane with yellow PVC connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |
RSPU110 |
Black polyurethane with red PVC connection support Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |
RSPU710 |
Red and yellow polyurethane with galvanized steel connection supports Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |

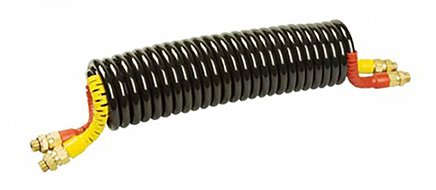

RSPU711 |
Black polyurethane with red and yellow PVC connection supports Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |

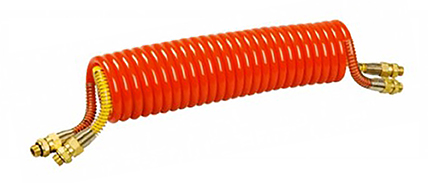

RSPU712 |
Red and yellow polyurethane with galvanized steel connection supports Inner diameter 50 mm, outer diameter 75 mm Working length 4 mtrs Hose size 8 x 2 x 12 mm Connection M22 x 1,5 |
 |

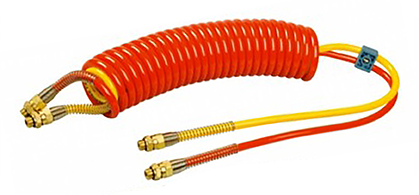

RSPU801 |
Red and yellow polyurethane with galvanized steel connection supports Inner diameter 50 mm, outer diameter 75 mm Inner diameter 50 mm, outer diameter 75 mm Working length 4,5 mtrs Hose size 8 x 2 x 12 mm Connection M16 x 1,5 |
 |

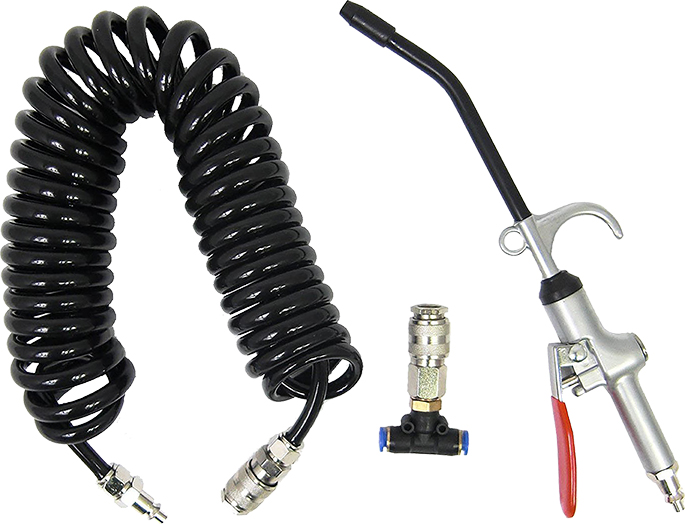

RSPU092 |
Black polyurethane air pressure gun incl. T-piece Working length 4,5 mtrs Hose size 8 x 6 mm Max. pressure 10 Bar |
 |
RSPA556 |
Black polyamide with red PVC connection support Inner diameter 90 mm, outer diameter 115 mm Working length 4 mtrs Hose size 12 x 9 mm Connection M18 x 1,5 |
 |
RSPA557 |
Black polyamide with yellow PVC connection support Inner diameter 90 mm, outer diameter 115 mm Working length 4 mtrs Hose size 12 x 9 mm Connection M18 x 1,5 |
 |
RSPA558 |
Black polyamide with black PVC connection support Inner diameter 90 mm, outer diameter 115 mm Working length 4 mtrs Hose size 12 x 9 mm Connection M18 x 1,5 |
 |
RSPU603 |
Coupling with valve M16 red |
 |
RSPU204 |
Coupling with valve M22 red |
 |
RSPU601 |
Coupling without valve M16 red |
 |
RSPU201 |
Coupling without valve M22 red |
 |
RSPU604 |
Coupling with valve M16 yellow |
 |
RSPU203 |
Coupling with valve M22 yellow |
 |
RSPU602 |
Coupling without valve M16 yellow |
 |
RSPU202 |
Coupling without valve M22 yellow |
 |
