Non-insulated Butt Connectors GT series
View pictures
These are the longer models.
features:
| Max. electrical rating: | 600 Volts |
| Material: | Copper |
| Plating: | Electro tin plated |
| Insulation: | None |
- RoHS compliant

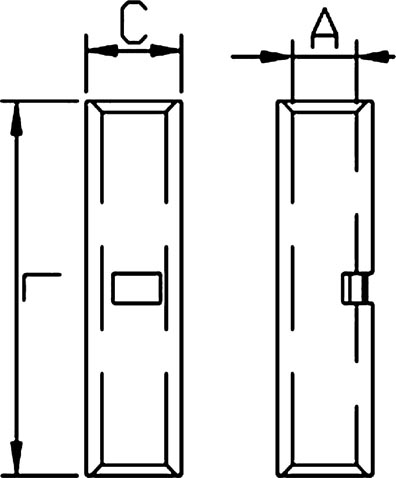

| Prt nr. | Wirerange AWG | Wirerange mm² | L | A | C | UL | Packed |
|---|---|---|---|---|---|---|---|
| GT 1.5 | 22~16 | 0.5~1.5 | 16.5 | 1.9 | 3.3 | 100 | |
| GT 2.5 | 16~14 | 1.5~2.5 | 22 | 2.6 | 4 | 100 | |
| GT 4 | 12 | 4 | 25.2 | 3.5 | 4.8 | 100 | |
| GT 6 | 10 | 6 | 25.2 | 3.8 | 5.5 | 100 | |
| GT 4/6 | 12~10 | 4~6 | 25.5 | 3.5 | 5.2 | 100 | |
| GT 10 | 8 | 10 | 30 | 4.5 | 6.5 | 100 | |
| GT 16 | 6 | 16 | 32.5 | 5.5 | 7.5 | 100 | |
| GT 25 | 4 | 25 | 35.5 | 7 | 9.5 | 100 | |
| GT 35 | 2 | 35 | 40.5 | 8.5 | 11 | 100 | |
| GT 50 | 1/0 | 50 | 40.5 | 10 | 13 | 25 | |
| GT 70 | 2/0 | 70 | 45.5 | 11.5 | 15 | 25 | |
| GT 95 | 3/0 | 95 | 50.5 | 13.5 | 18 | 25 | |
| GT 120 | 4/0 | 120 | 65.5 | 15 | 19.5 | 25 | |
| GT 150 | 250/300 kcmil | 150 | 70.5 | 16.5 | 22 | 25 | |
| GT 185 | 300/350 kcmil | 185 | 75.5 | 19 | 25 | 12 | |
| GT 240 | 400/450 kcmil | 240 | 80.5 | 21 | 27.5 | 6 | |
| GT 300 | 300 | 90.5 | 23.5 | 30.5 | 5 | ||
| GT 400 | 400 | 100 | 27 | 34 | 5 |
