Heat Shrink Insulated Spade Terminals

View pictures

features:

Insulation: Dual wall heat shrinkable polyamide, adhesive lined
Shrink ratio: 3:1
Material: Copper
Plating: Electro tin plated
Max. electrical rating: 600 Volts
Operating temp: -50 ~ 125 °C
Min. shrink temperature: 180 °C
  • RoHS compliant
  • Halogen and silicon free
  • Excellent conductivity property
  • High transparency, high tensile strength
  • Excellent stretch and mechanical damage resistance
  • High elasticity keeps steady performance
  • Water proof and moisture resistance

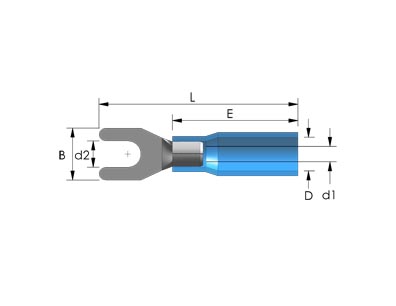

Prt nr. Wirerange mm² Color d2 B L E D d1 UL Packed Datasheet
HS 1.25-4A  0.5~1.5  red 4.3 8.1 30.0 21.0 4.8 1.7 Y 100 view
HS 1.25-5A 0.5~1.5  red 5.3 9.5 30.0 21.0 4.8 1.7 Y 100 view
HS 2-4A  1.5~2.5  blue 4.3 8.1 30.0 21.0 5.8 2.3 Y 100 view
HS 2-5A  1.5~2.5  blue 5.3 9.5 30.0 21.0 5.8 2.3 Y 100 view
HS 5.5-4A  4~6  yellow 4.3 9.0 34.0 25.0 6.8 3.4 Y 100 view
HS 5.5-5A  4~6  yellow 5.3 9.0 34.0 25.0 6.8 3.4 Y 100 view
